UTILITY AMPHIBIAN & CAR CARRIER
A NEW CLASS OF WATER CRAFT FOR THE WORLD

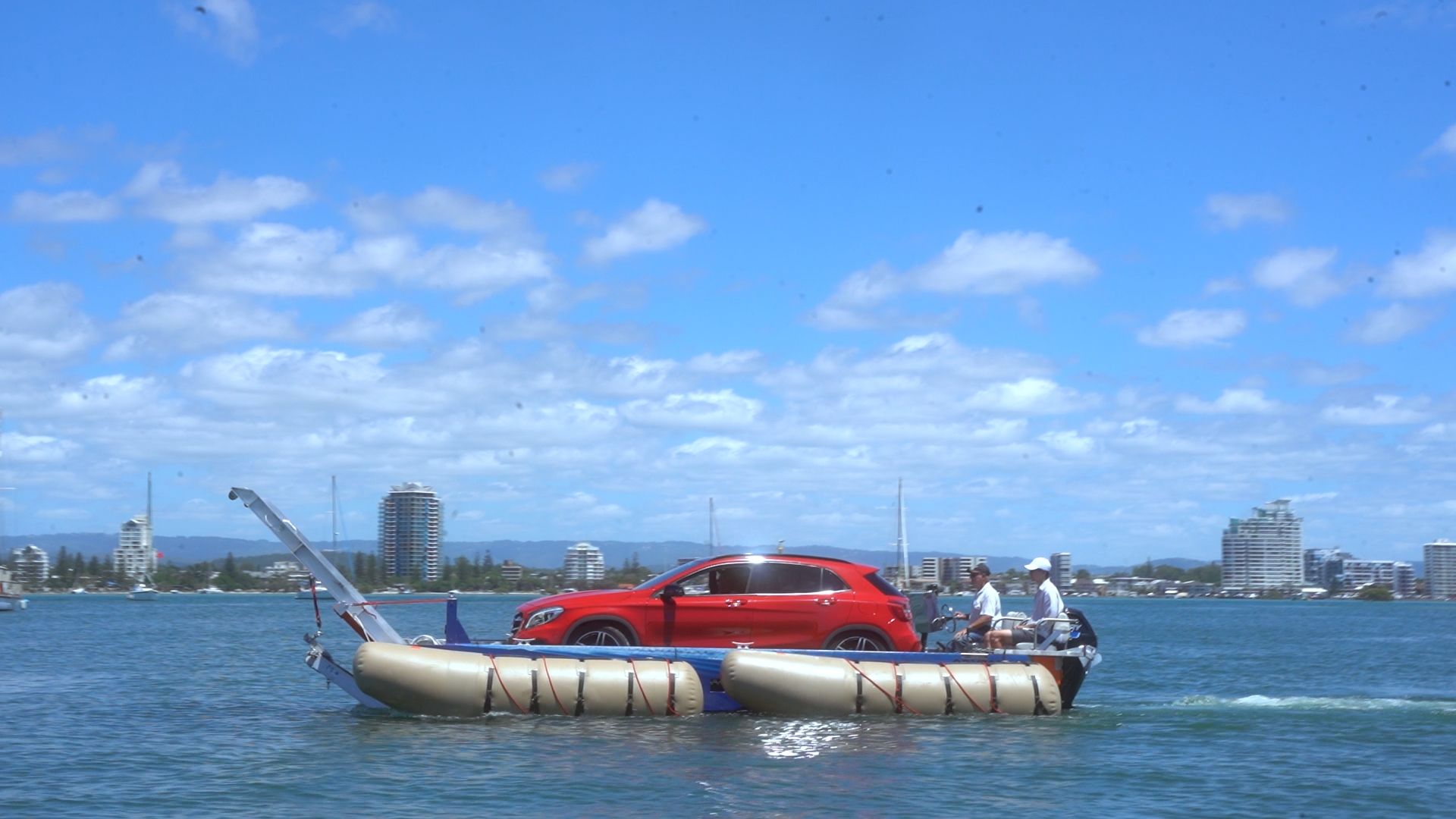

This vessel is a novel concept hybrid dual axle Trailer and combined Vehicle Barge. It is designed to be towed by a vehicle to a ramp then launched. With the deployment of four large air bags then able to transit waterways with the vehicle secured on board.
Designed and built in Australia with Pride
- Wheel bearings are sealed marine bearings.

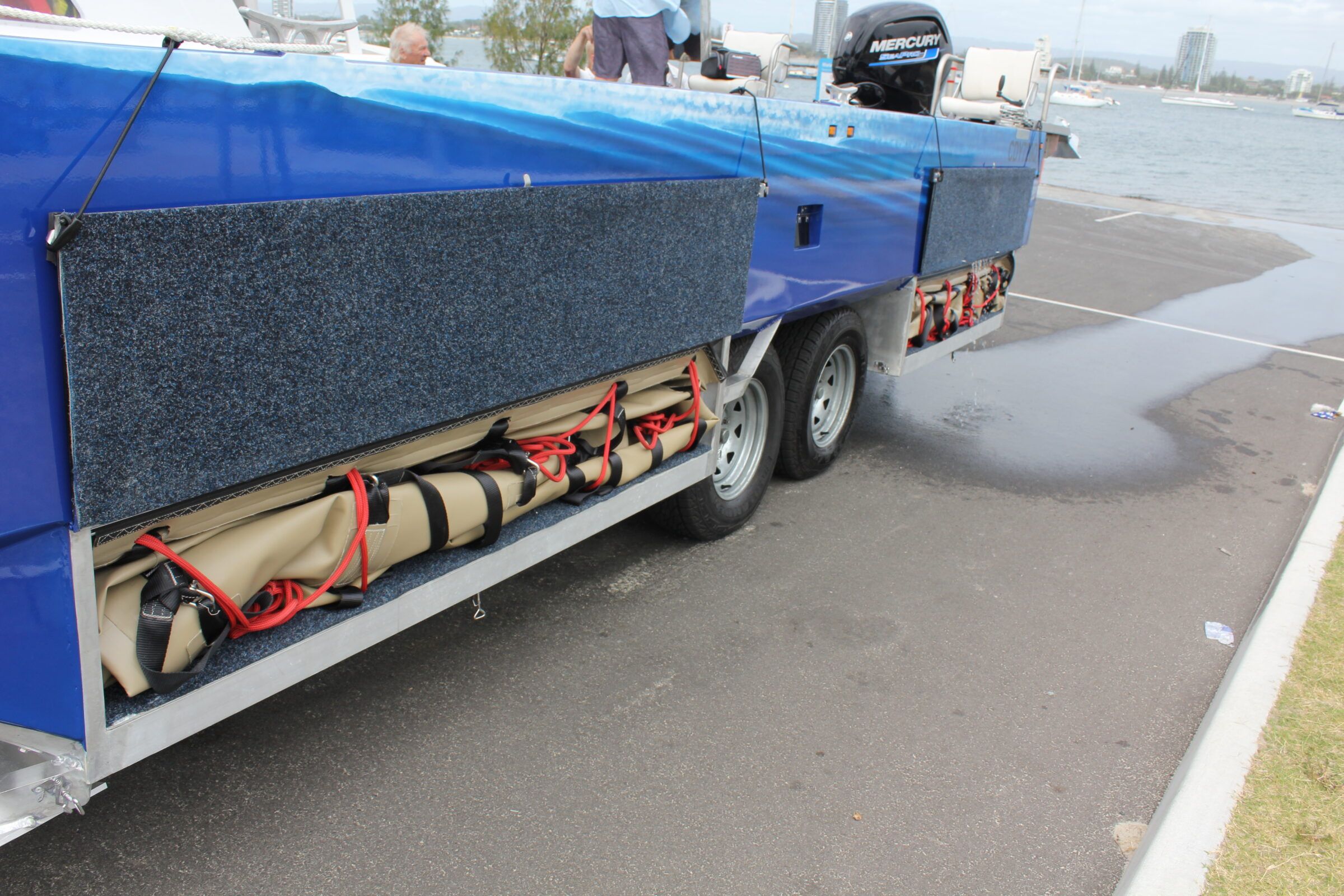

- Floats stored in lockers.

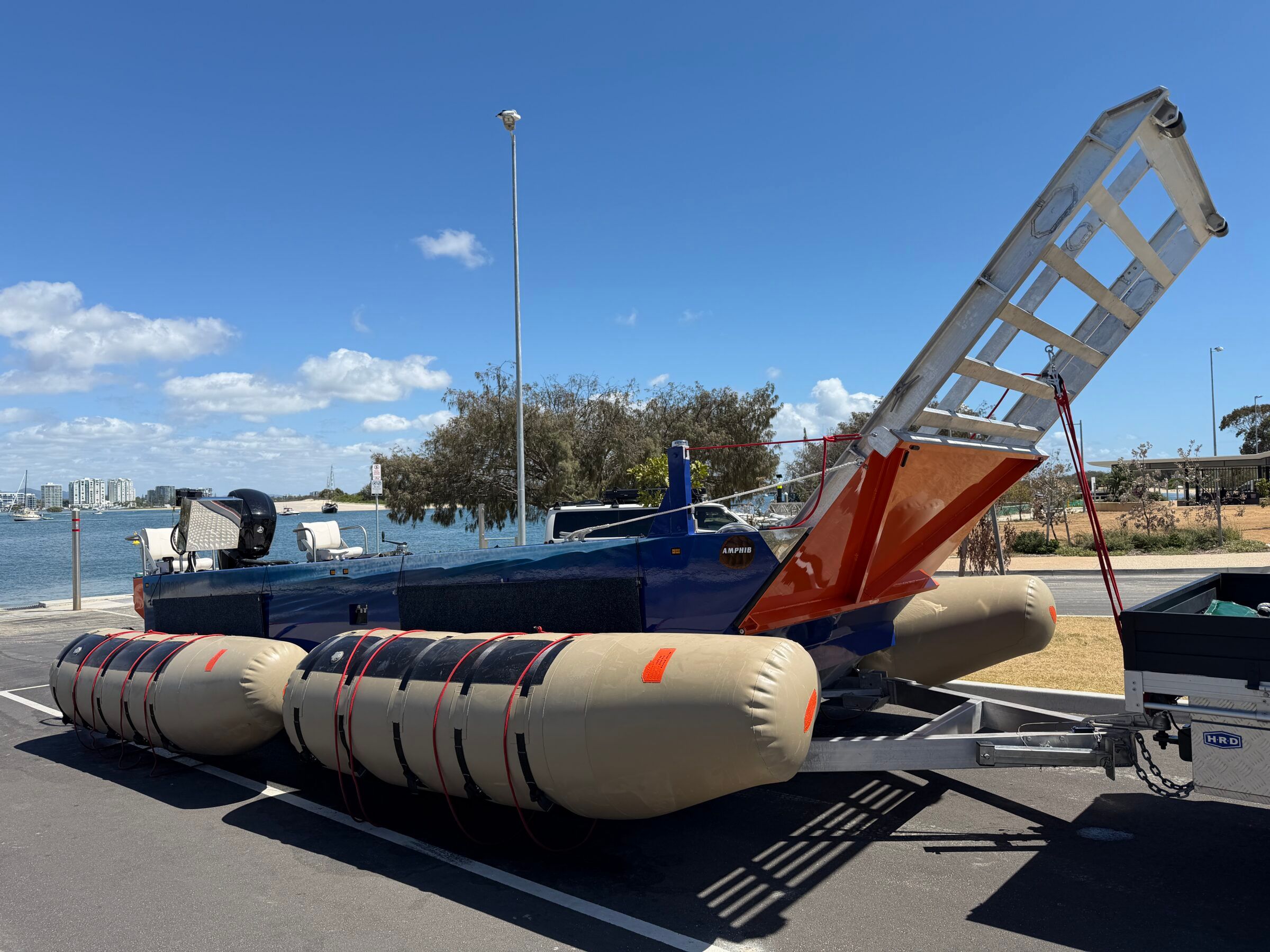

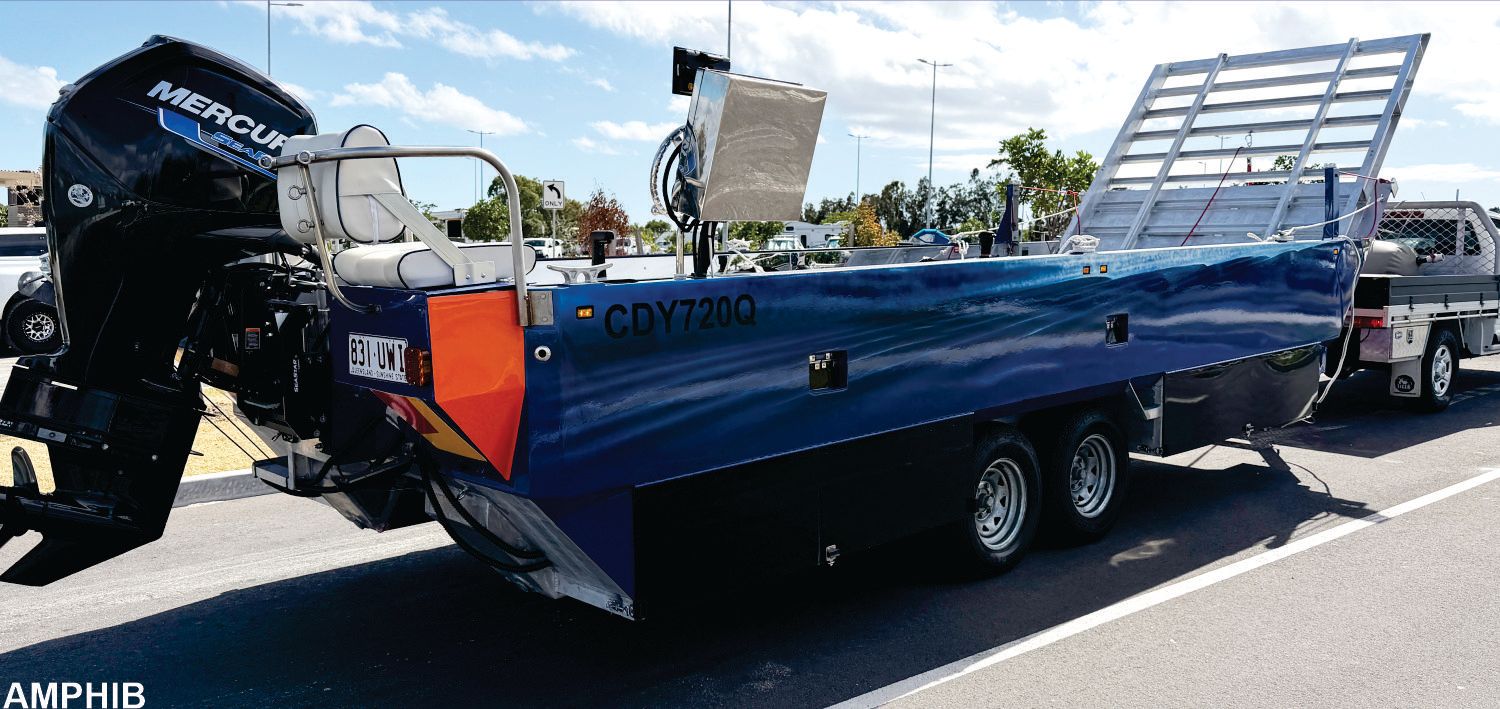

- Towed as a road trailer
- Tow car needs 3 Ton tow capacity.
Personalised paint schemes:
Camouflage – tribal art – nature schemes (ie. Crocodile etc.)
Meets client’s discerning taste
- Each float lifts 1550 kg 3416 lbs.
- Each float has two electric pumps to inflate/deflate air bags. Wheel bearings are sealed marine bearings.
- Air bags are super strong made by TURTLE-PAC Australia.

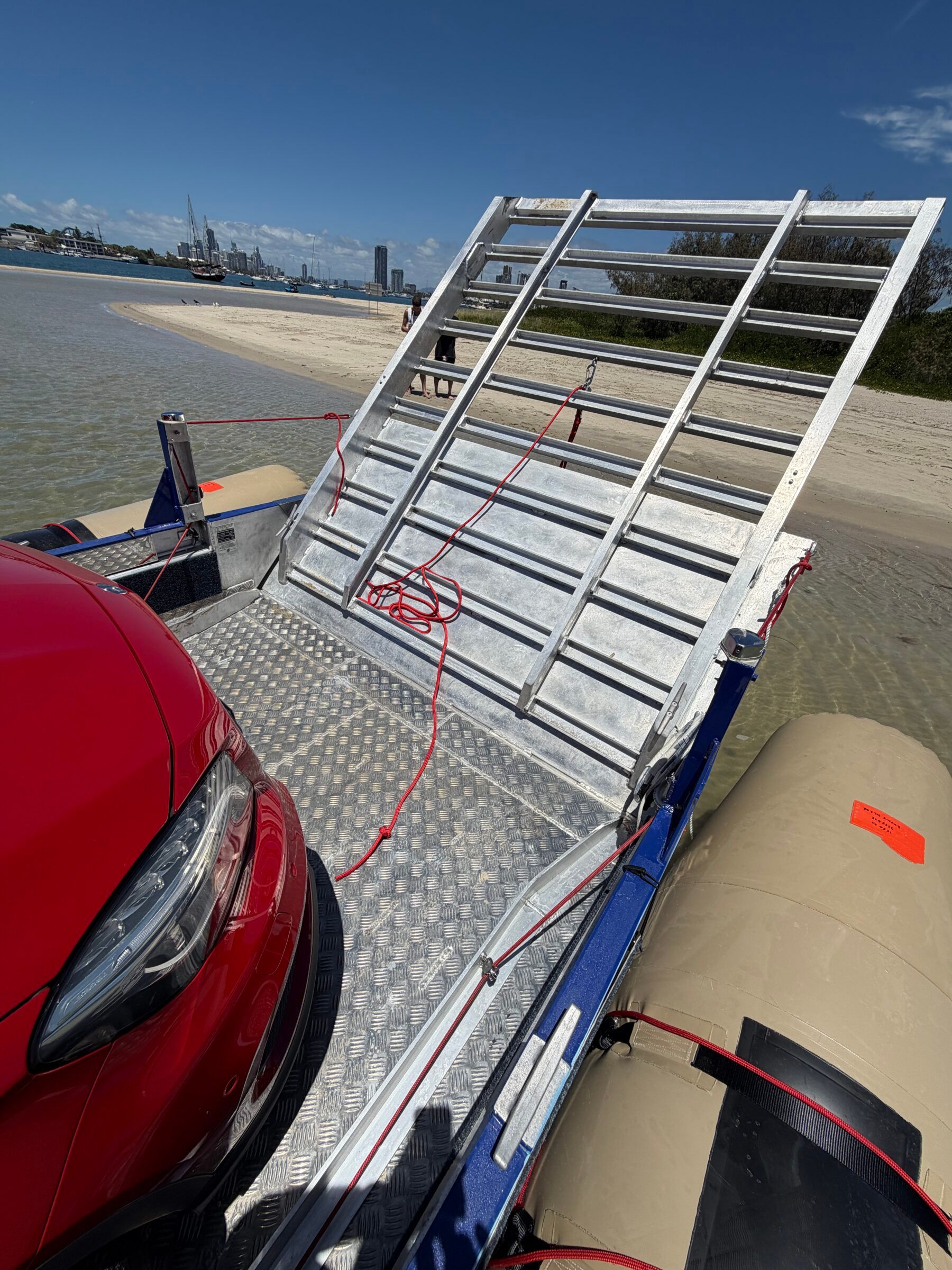

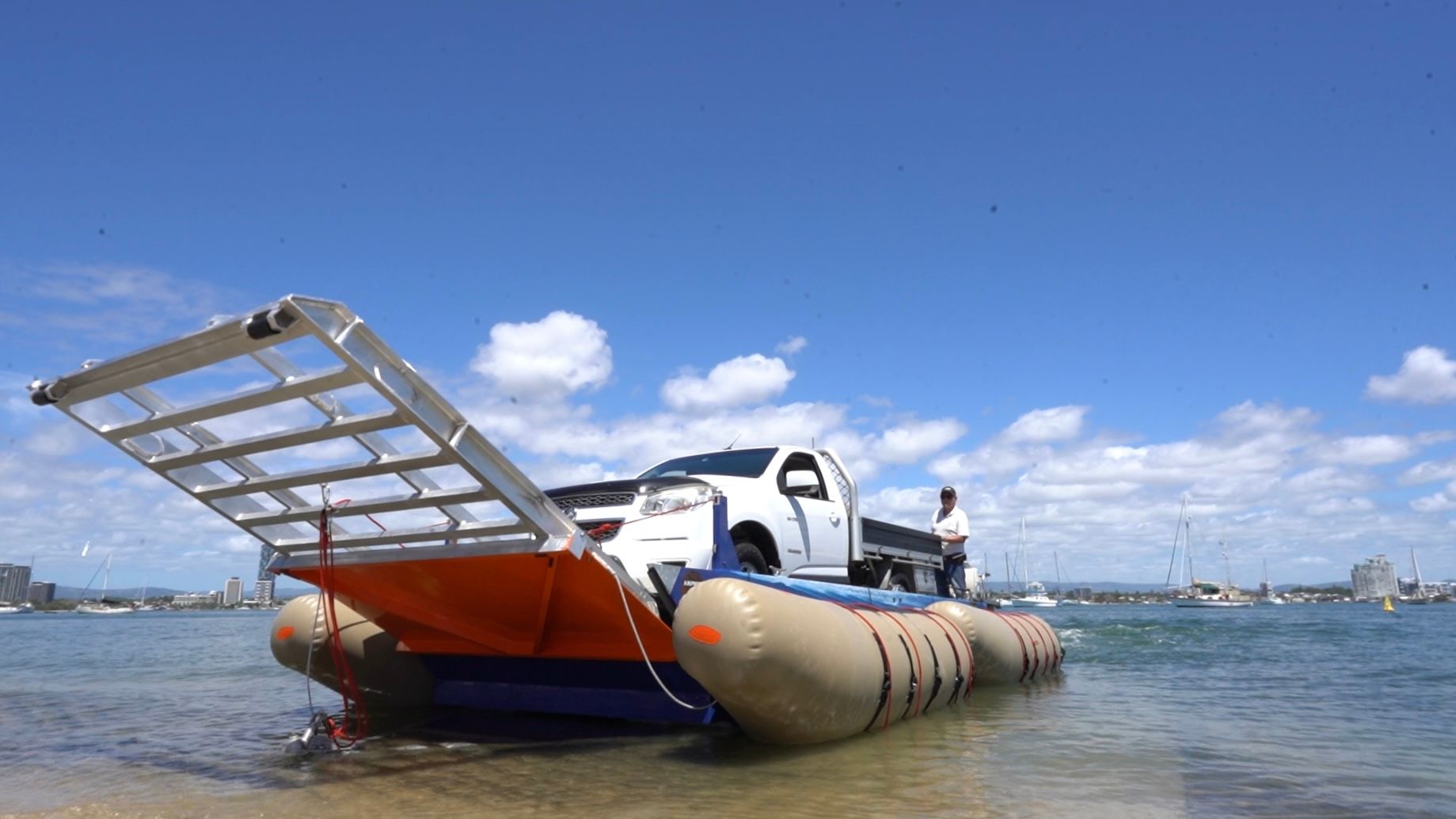

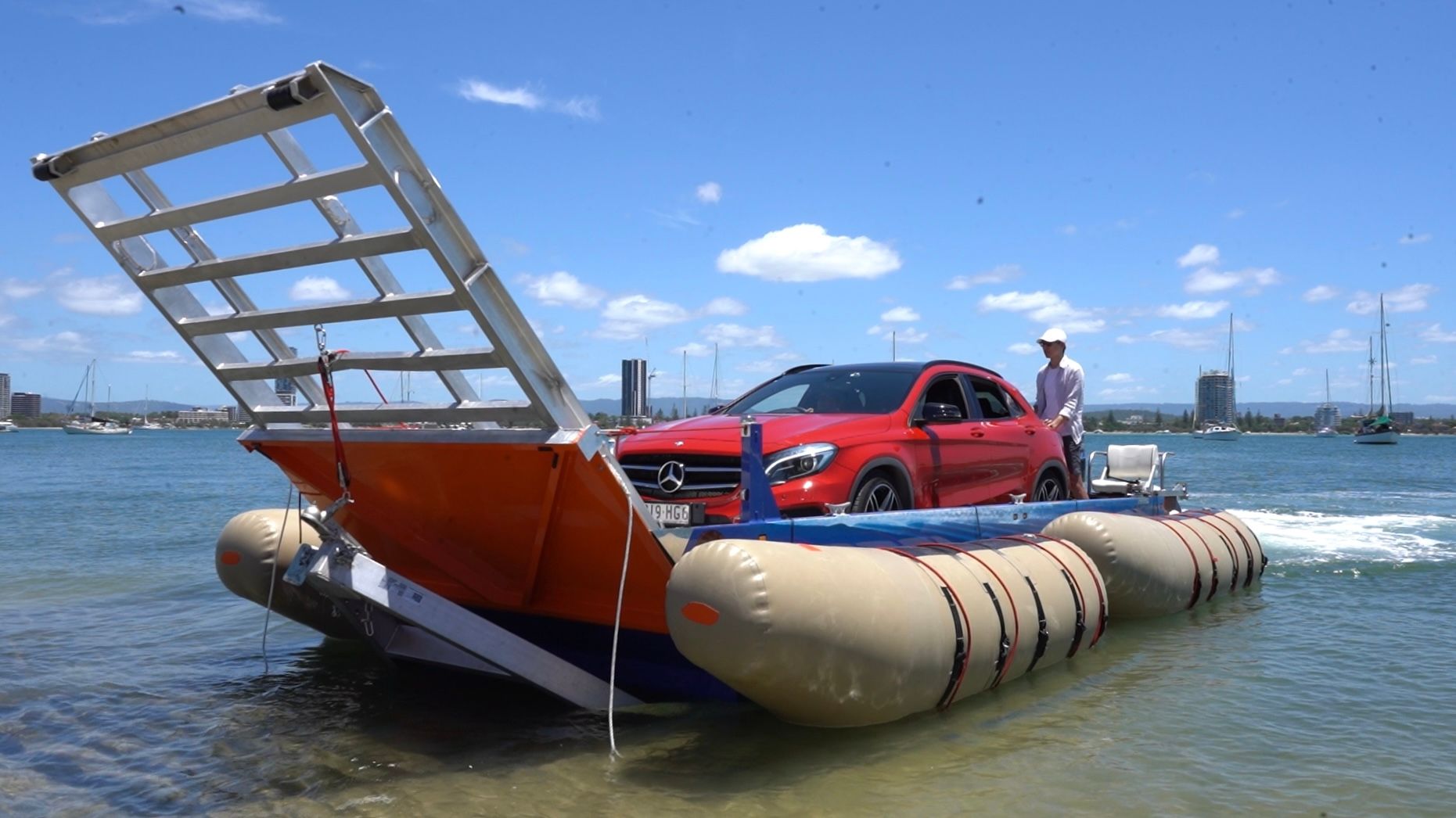

- Ramp has rubber rollers to push up on landing surface
- Electric winch pulls up car and floor guides help keep it straight.
- Can load builder’s truck, Bob Cat and all terrain vehicles – track bikes.
- SUV motor home for adventure on Cape York’s coast and rivers.
- Open up adventures for Alaska – Caribbean Islands – Indonesia islands – the globe is the limit.
- Electric winch lowers and raises ramp.
Can be utilised as utility barge for flooded areas to rescue people and supply food – fuel – medical assistance – animal feed etc.
SUPER STABLE even in waves! Like a raft sits low & stable.
- Floats deflect waves & spray.

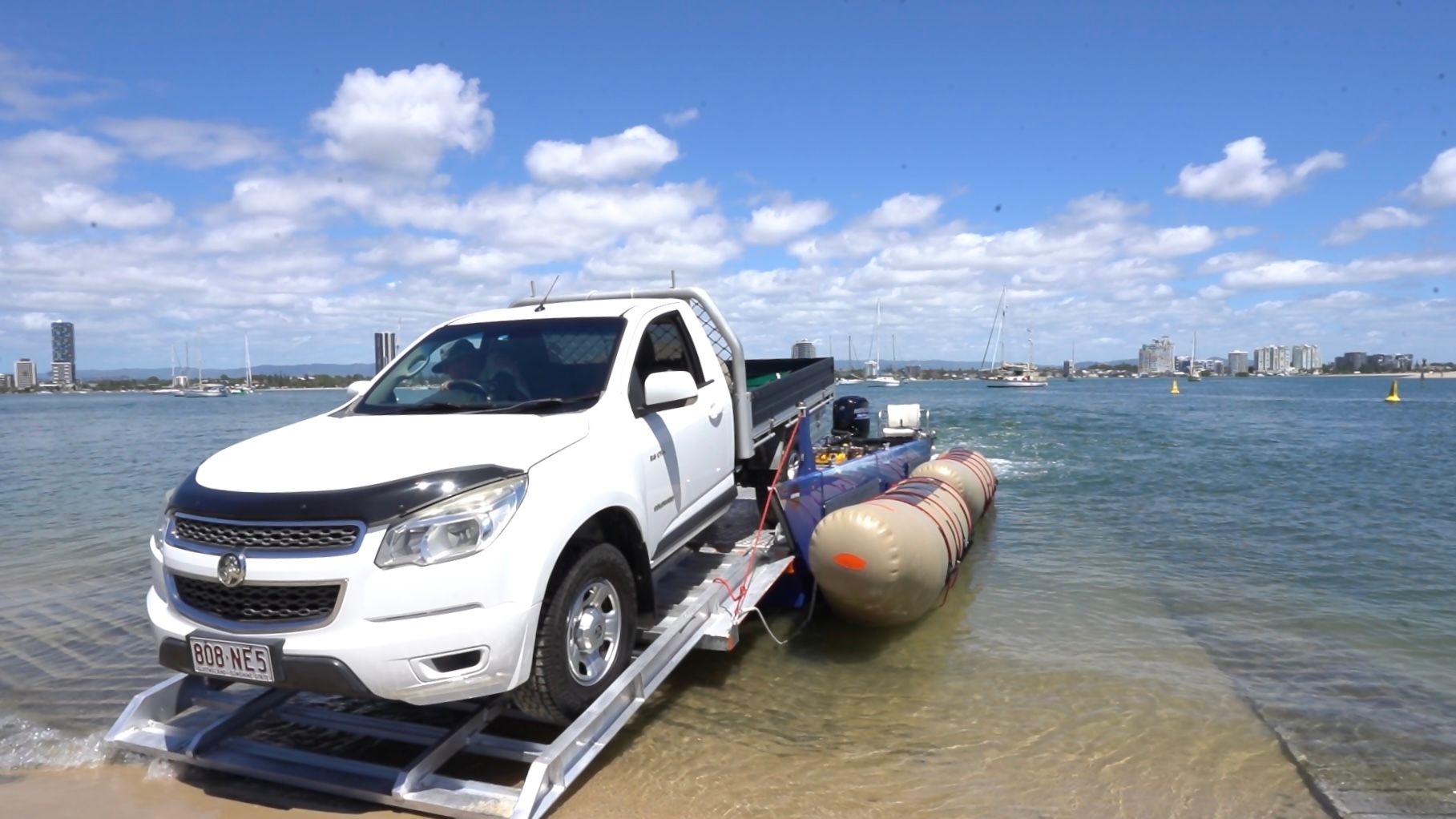

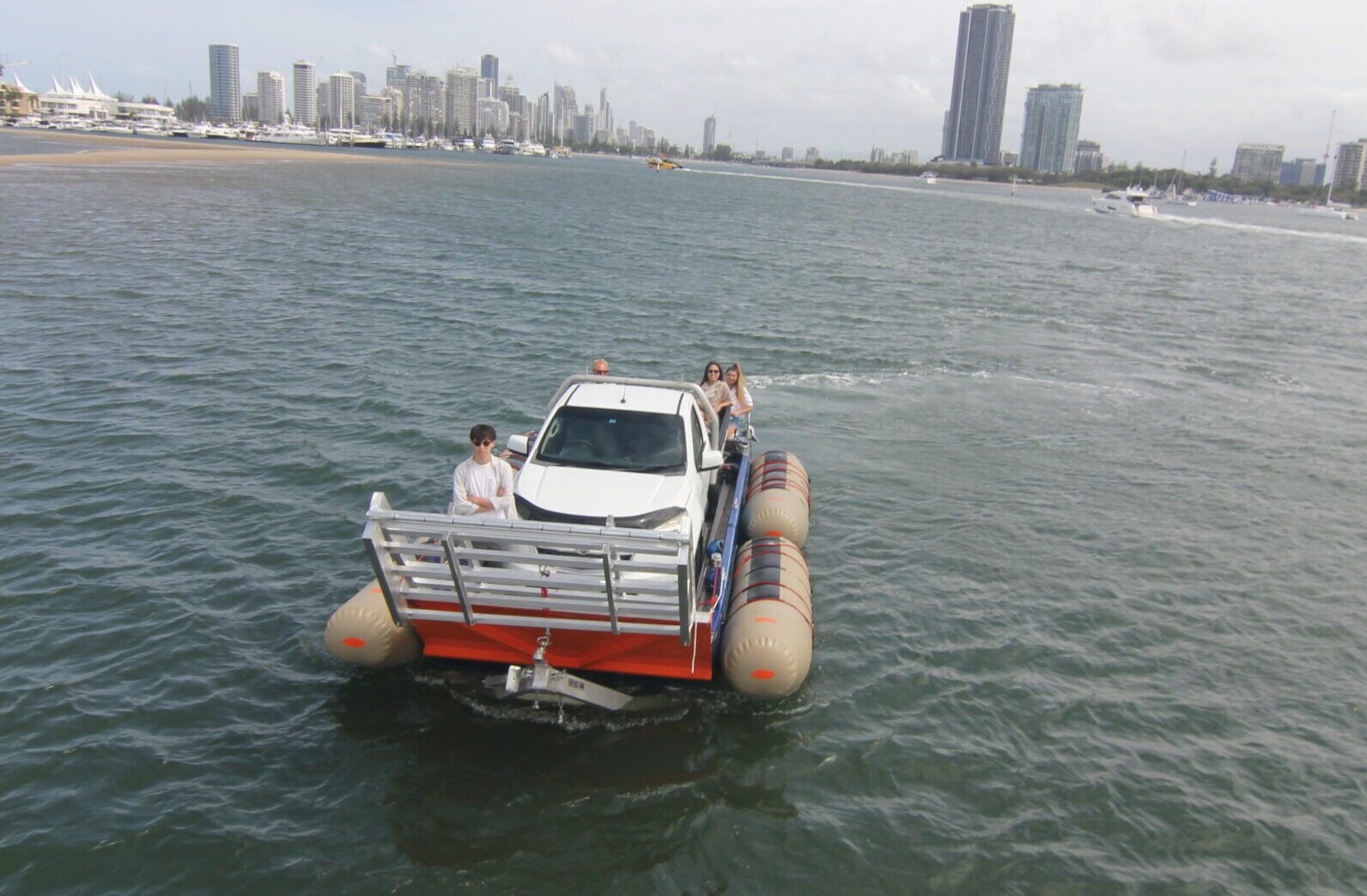

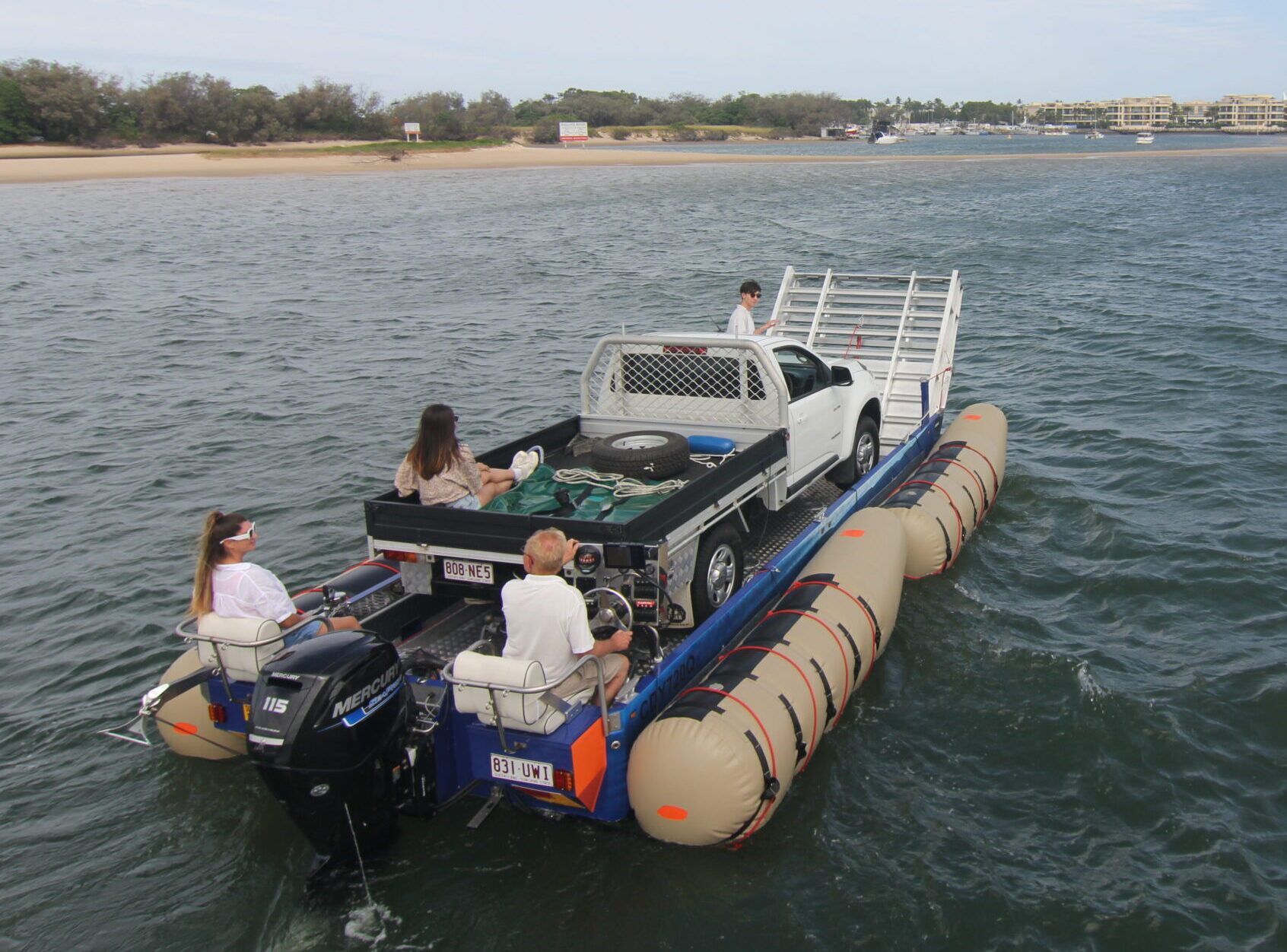

- HOLDEN COLORADO and people 2200 kg 4849 lbs.
- Speed 5 knots loaded.
- Portside winch lower/raise ramp.
- Centre winch pulls car up to deck.

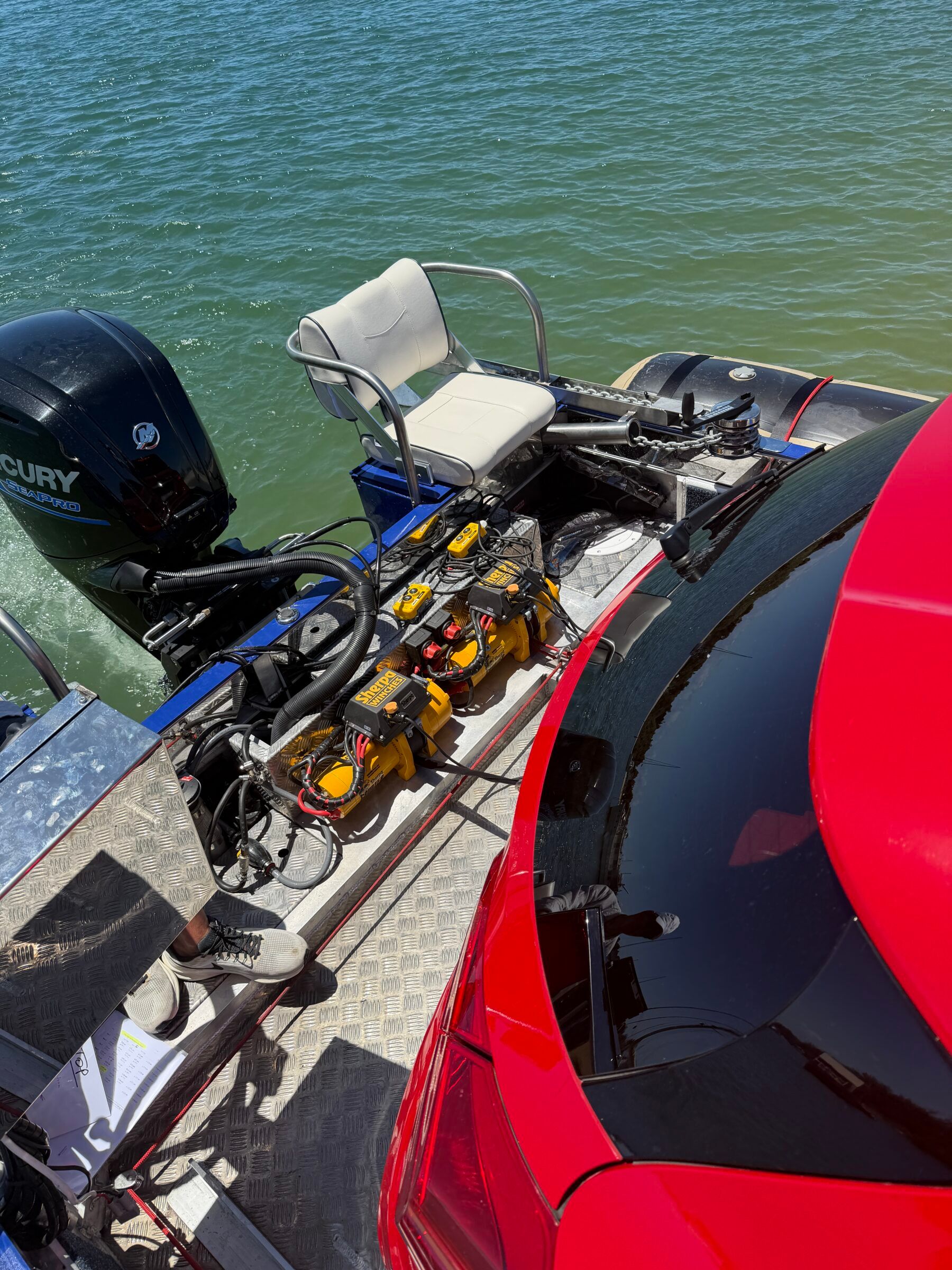

- Three batteries below deck.
- Fuel tank 400 lt 105 USG below deck.

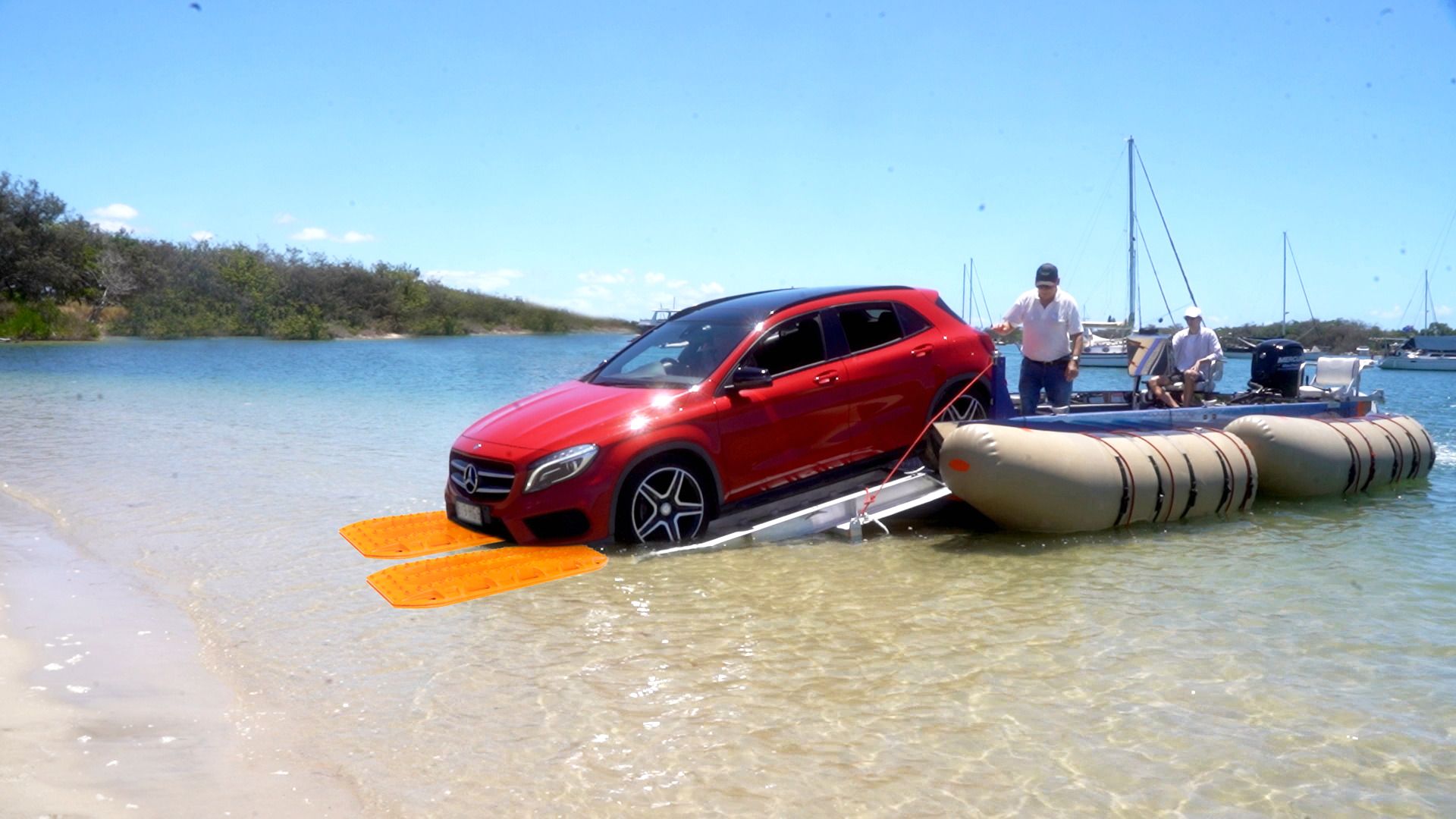

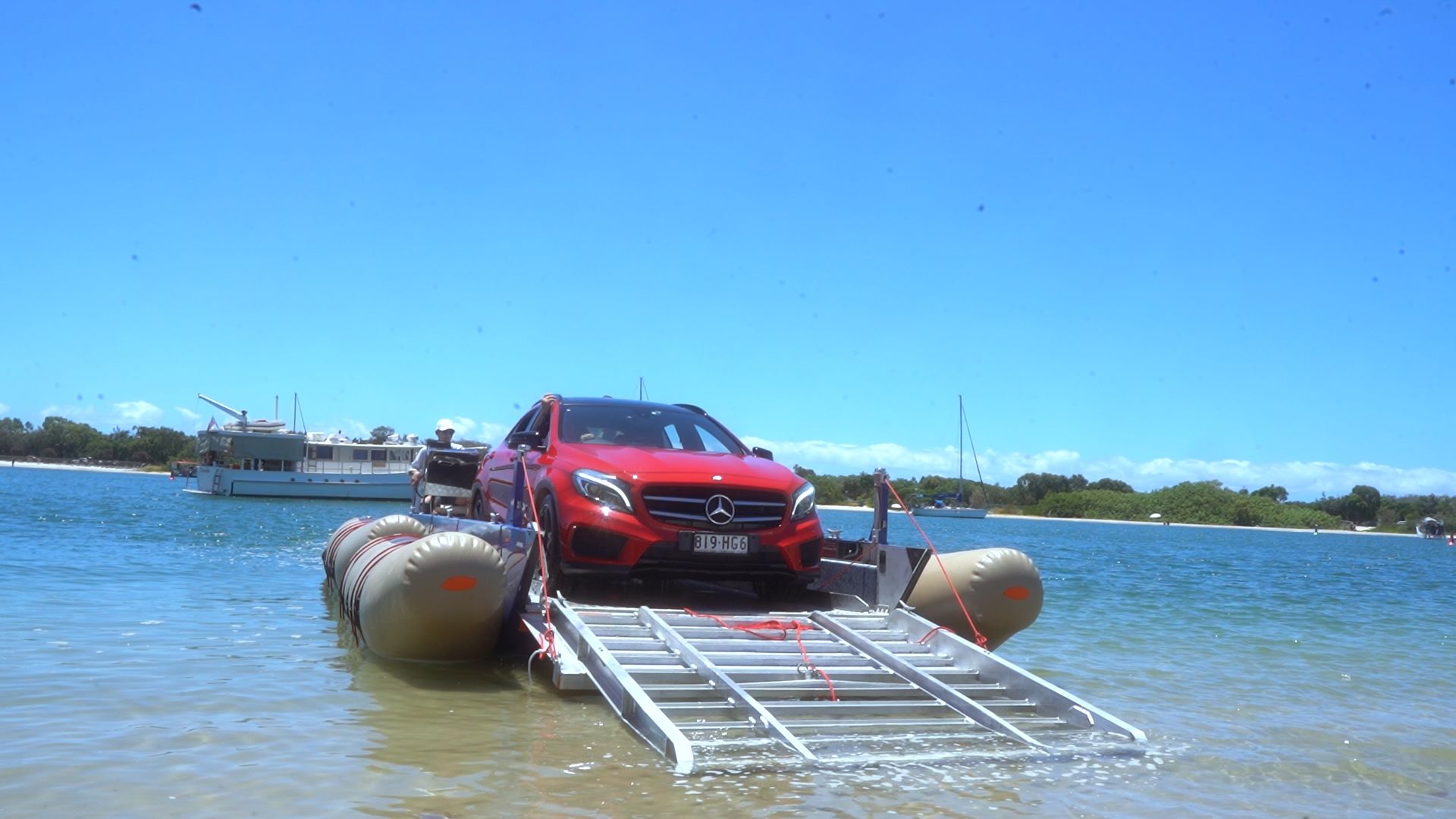

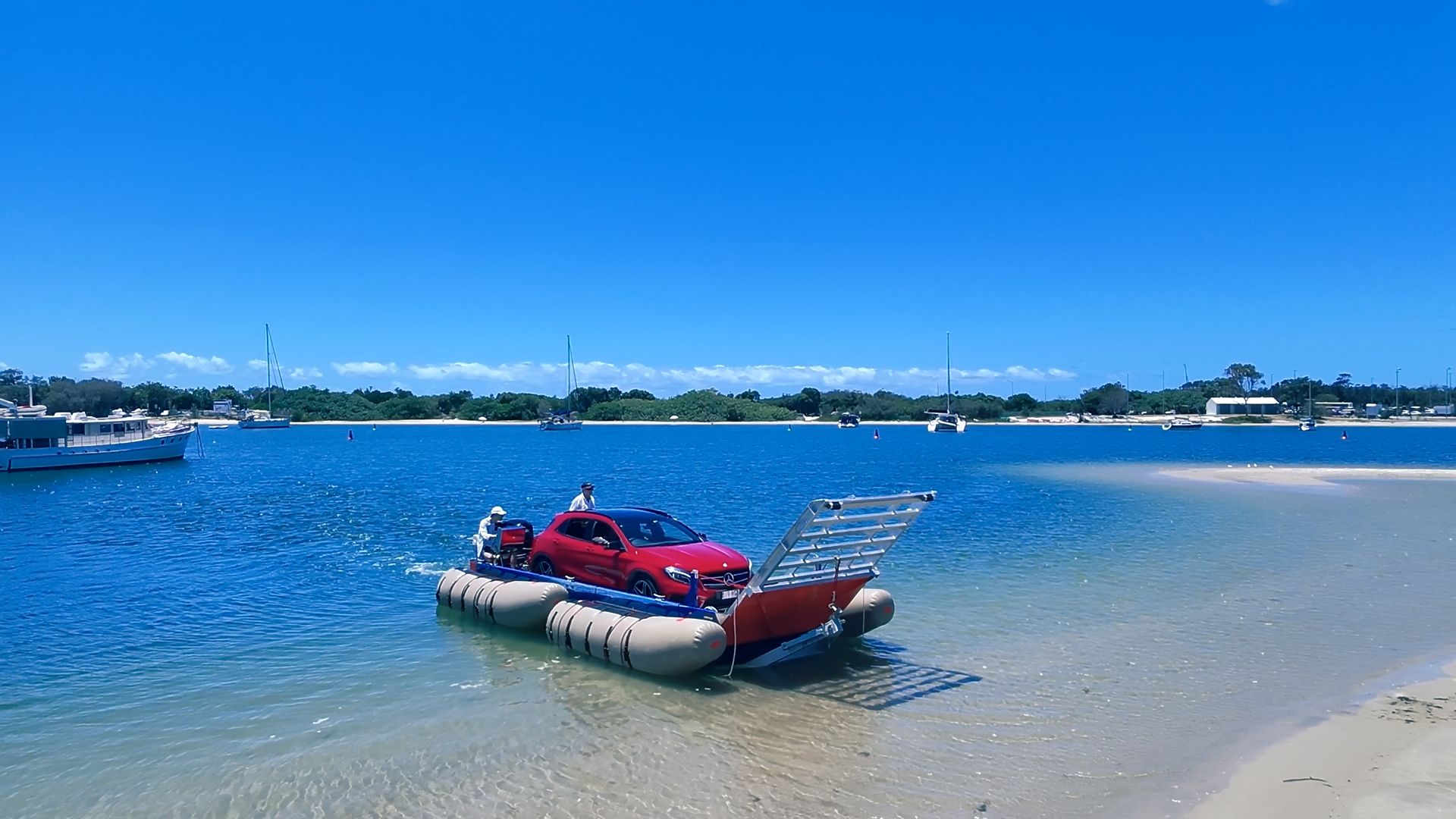

Can load/offload on firm sand beaches as long as water is 0.6 M 2′ deep at base of ramp.
If needed use 4WD recovery tracks to keep wheels out of water.
Specifications
Fuel Capacity: 400 lt 105 USG Under deck.
Construction: Marine grade aluminium to NSCV standards Australia
Certified for: Class 2C/2D Partially open waters as Great Barrier Reef Islands – Northern Territory
Loading Floats Deployed: 3250 kg 7163 lbs.
As a Ford Ranger with 5 people ….
Loading floats stowed: 8 people. 760 kg 1675 lbs.
Engine: 1 x 115 HP Mercury Outboard (Seapro) 165 kg.
Road Trailer brakes: Hydraulic.
Lights: 12 v road certified and navigation marine standards.

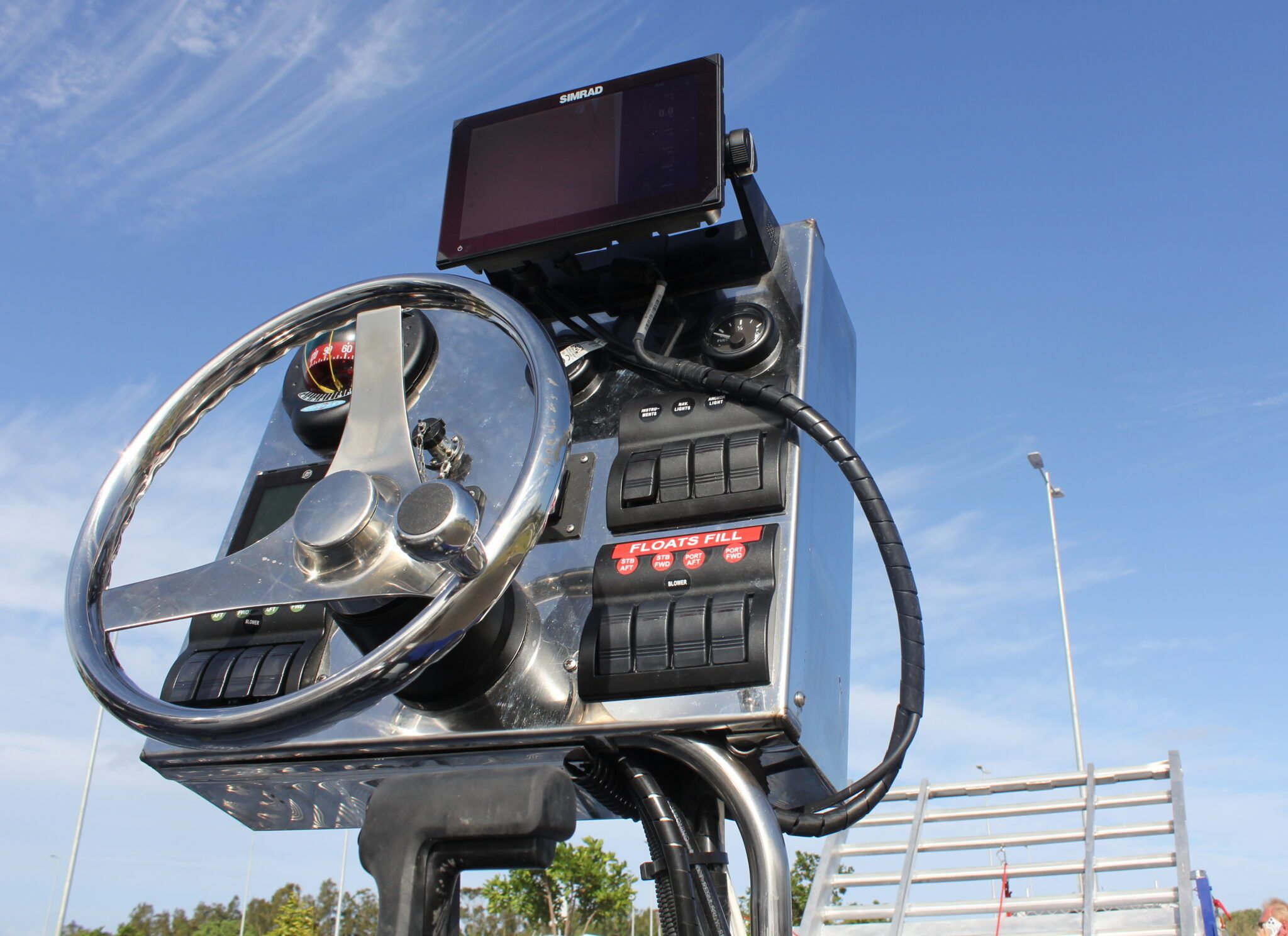

Navigation panel: compass – GPS – depth sounder – engine gauges. VHF radio.
12 V – USB – cigarette lighter plugs.
Builder: TURTLE-PAC Australia.
Designer/Inventor: Laszlo Torok.
Patents: Protection in Australia – USA – Canada.
AMPHIB logo is registered trade mark in USA – Australia – Canada

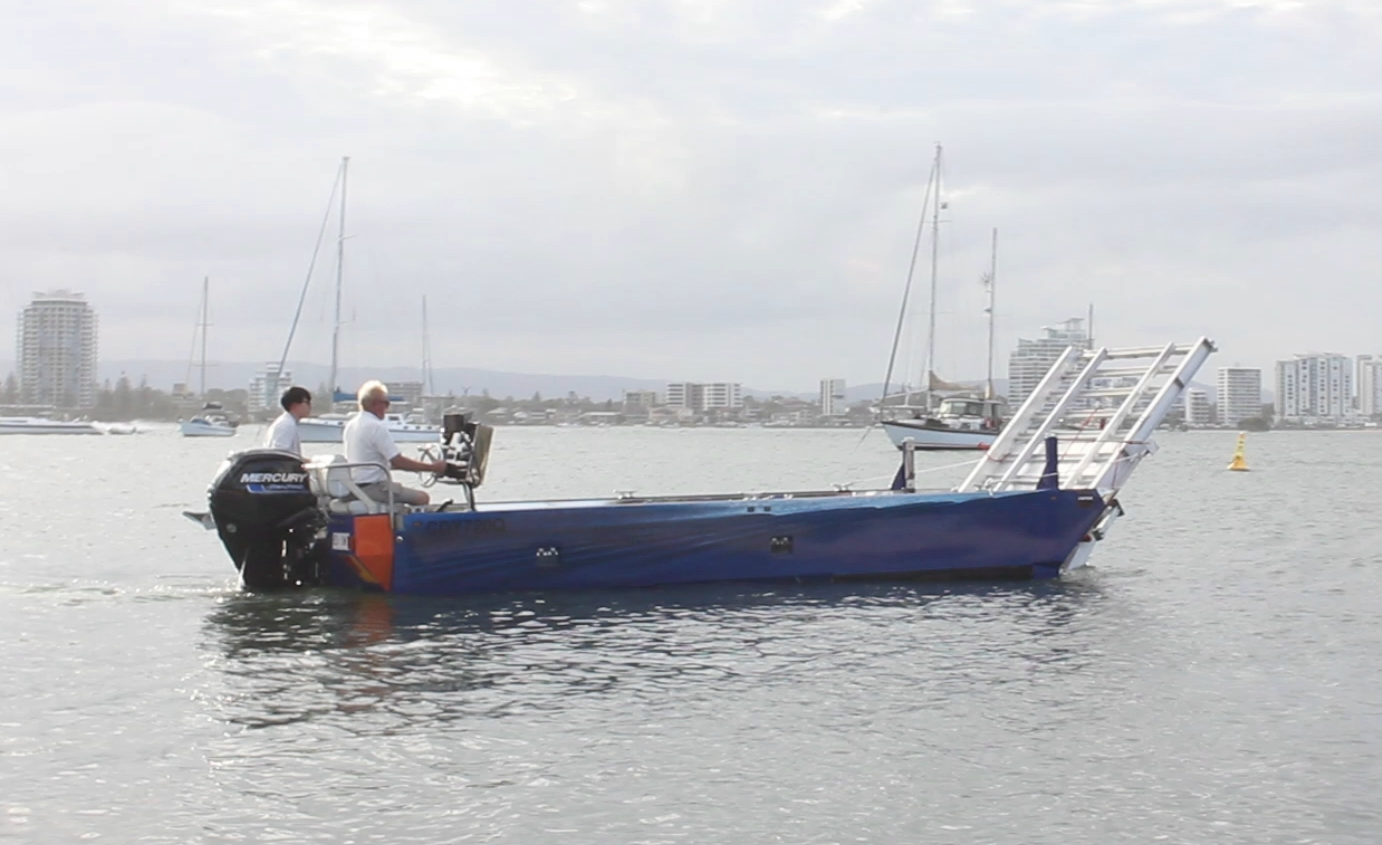

Floats Stored.
Load of 760 kg 1675 lbs. 8 x people
Use as a stable large fishing platform – light cargo – maintenance barge – party amphibian.
Click on image to view or download – click here

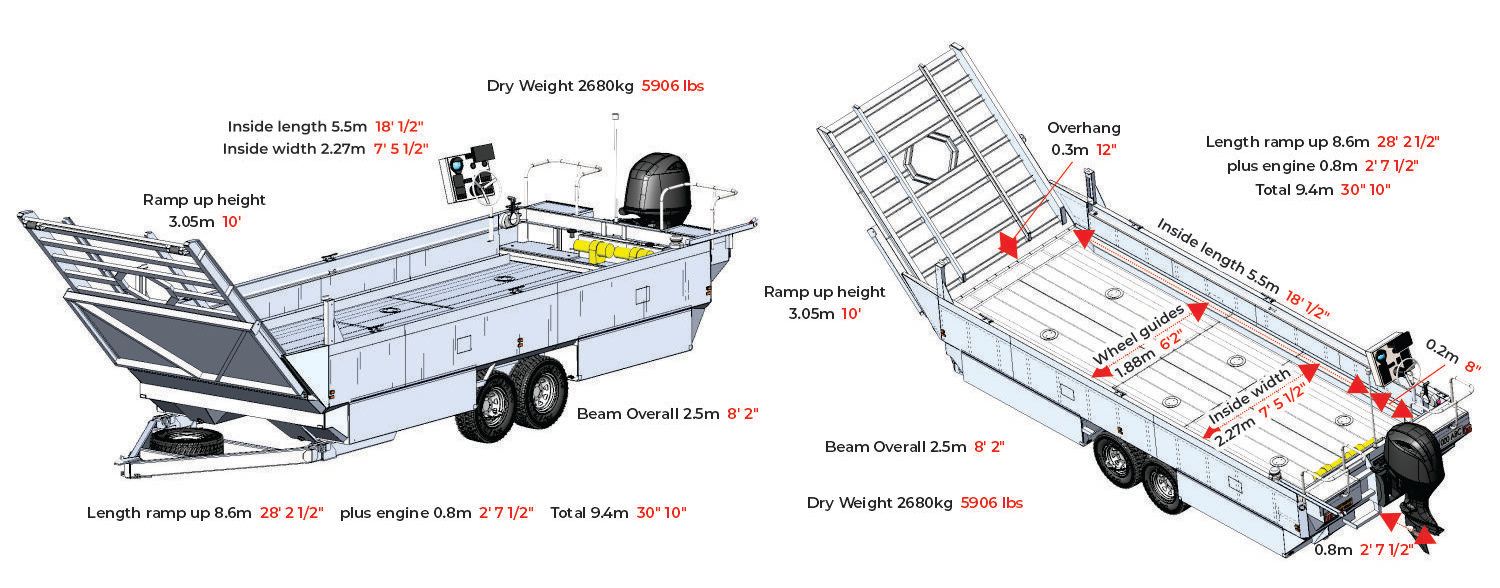

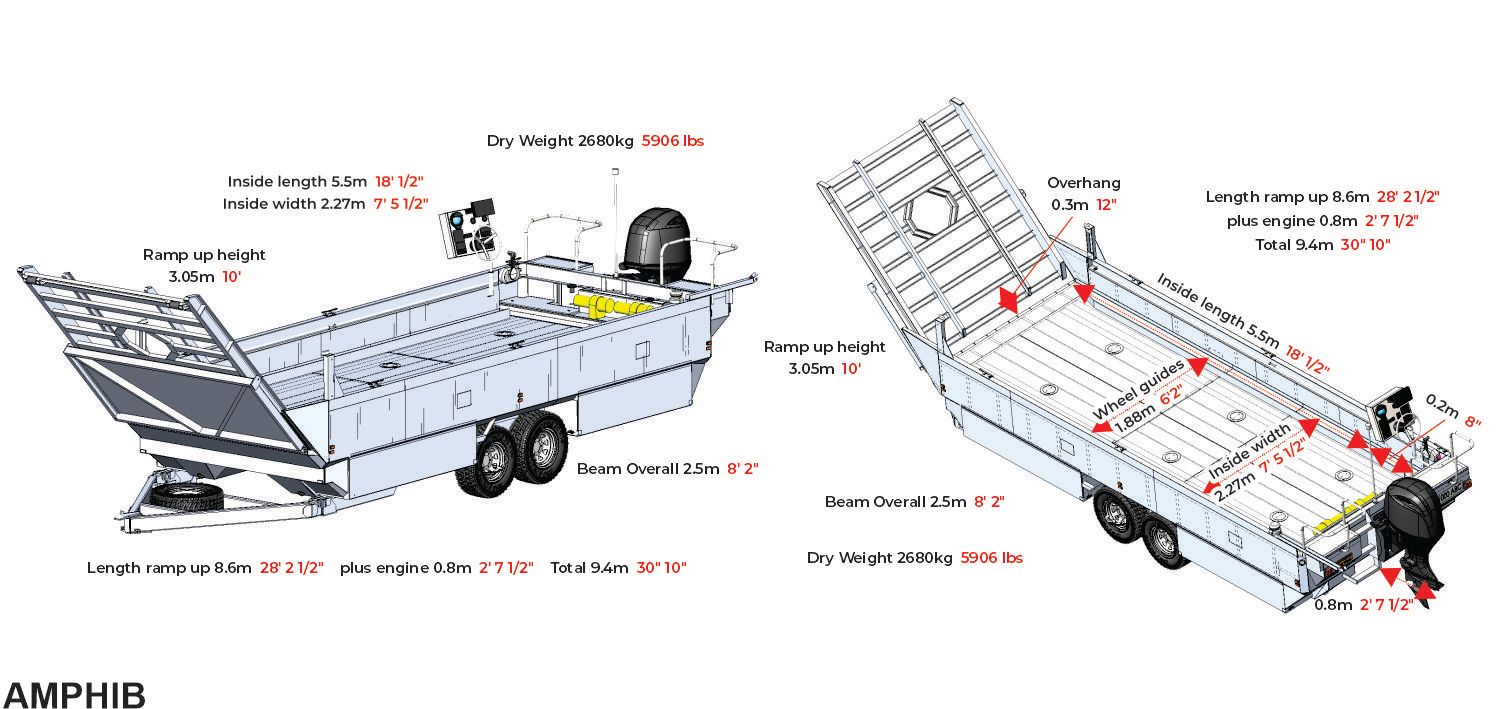

Full length ramp up:
8.6 M, 28’2.5″ Plus engine 0.8 M 2’7.5″ = Total 9.4 M 30’10”
Length Hull: 8.2 M 26’11”
Beam Overall: 2.50 M 8’2″
Height of ramp up: 3.05 M 10′
INSIDE measure for vehicles to fit:
Length: From ramp’s hinge to steering box aft: 5.5 M 18’0.5′ (Ford Ranger 5.36 M)
Plus over hang ramp 0.3 M 12″
Width: 2.27 M 7’5.5″ (Ford Ranger 1.85 M)
Wheel Tyre Guides : 1.88 M 6’2″
